**Prototypes and Codes**

### Multi-Timbre Synthesizer

This synthesizer was built as a Program Exercise (EP) to Computer Music class, from the Institute of Mathematics and Statistics of the University of São Paulo / BR, by professor Dr. Marcelo Queiroz.

#### How do I download Pure Data?

Miller S. Puckette's "vanilla" distribution of PdLast release: Pure Data 0.51-3

Released 20/11/2020

Required extensions: Zexy

Download

If you have a synth keyboard, plug it into you computer and follow this steps.

Else if, you don't have a keyboard, see this instructions.

Else if, you want to build a QWERTY synth keybord, see this Youtube video from LWM Music channel.

##### Source code

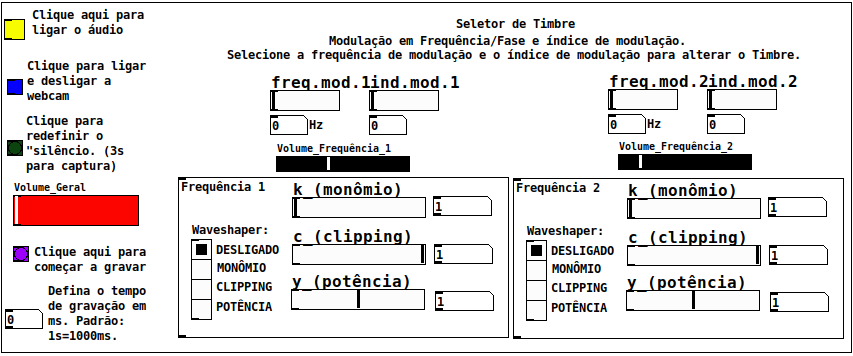

### Musicam - Webcam based digital instrument

#### Digital instrument based on oscilator's frequency manipulation using Webcam images

##### Source code

##### Required extensions

**Windows and MAC users:** If you want to run this patch quickly, you can download the DMG packages or the EXE installer of **Purr-Data** HERE.

##### Performances

**By Claudinei Sevegnani**(click on images to see)

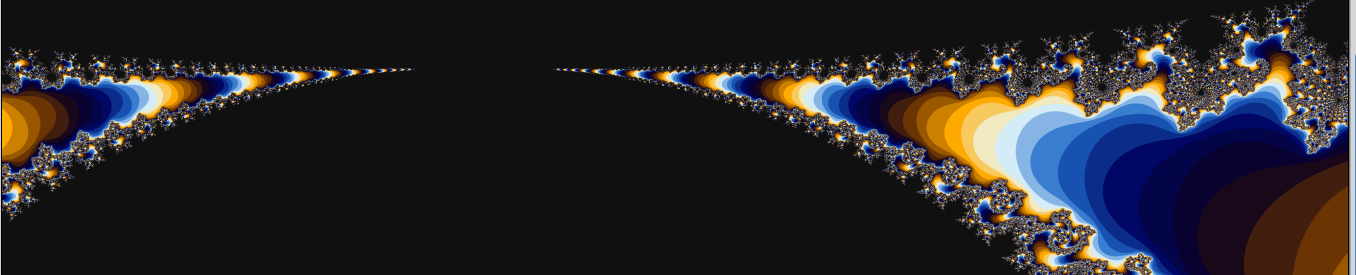

### Mandelbrot Fractal

#### Performance test using different parallel configurations.

##### Source code

This work contains some of programs-exercises of class MAC5742 - Introduction to Concurrent, Parallel and Distributed Programming (2020) - Institute of Mathematics and Statistics, São Paulo University (IME-USP).

##### Authors

Carlos Eduardo Leal de Castro (me)

Felipe de Lima Peressim

José Luiz Maciel Pimenta

Luis Ricardo Manrique

Rafael Fernandes Alencar

##### Description

The Mandelbrot Set is the set of all complex points \(\mathbb{C}\) such that the sequence \( \{z_n\}_{n\in(\mathbb{N}\cup\{0\})} \), given by \(z_{n+1}=z_n^2+c\), with \(z_0=c\in\mathbb{C}\), where this sequence remains bounded. That is, for any \(z\in\mathbb{C}\) that remains on this set, there \( \exists R_{max} \) such that \(\vert z \vert \leq R_{max}\).

##### Performance tests

We did performance tests to compare all the methods used here: sequential, pthreads, openmp, openmpi, cuda, openmpi+openmp and openmpi+cuda. In these experiments, we measure the average time of 15 executions on each method, varying 3 different parameters:

- Dimensions (x,y) of grid and blocks (CUDA);
- Number of Threads (Pthreads and OMP);
- Number of processes (OMPI).

Algorithm | Executions |
---|---|

Sequential | --- |

OpenMP | 1 to \(2^{10}\) threads |

Pthreads | 1 to \(2^{10}\) threads |

CUDA | \(2^2\) a \(2^{6}\) clock size |

CUDA+OpenMPI (one node) | Block size \(n = (2,4,...,32)\), for each \(n, \ 2^2\) to \(2^6\) clock size |

CUDA+OpenMPI (two nodes) | Block size \(n = (2,4,...,64)\) in two nodes, each one with \(\frac{n}{2}\) processes, for each \(n, \ 2^2\) to \(2^6\) block size |

OpenMPI (two nodes) | Block size \(n = (2,4,...,32)\) |

OpenMPI (two nodes) | Block size \(n = (2,4,...,64)\) in two nodes, with \(\frac{n}{2}\) processes each |

OpenMPI+OpenMP (one node) | Block size \(n = (2,4,...,32)\), for each \(n, \ 2^2\) to \(2^6\) threads |

OpenMPI+OpenMP (two nodes) | Block size \(n = (2,4,...,64)\) in two nodes, with \(\frac{n}{2}\) processes each and, for each \(n\) we have \(2^2\) to \(2^6\) threads |
